Generate a VMD with Chameleon

Turns out the easiest way to create a VMD is from a valid HL7 sample message. Chameleon can parse the message and generate the VMD file. This process will work for any message type, in this example we are using an SIU message.

Create a sample message.

This is the sample SIU message:

MSH|^~&|SCHEDULER|GENERAL_HOSPITAL|IGUANA|INTERFACEWARE|20260911190000||SIU^S12^SIU_S12|SIU000001|P|2.7SCH|APT000123|BOOK000456||||CHECKUP^Routine Checkup|Routine outpatient appointment|NORMAL|||30|MIN|^^^20260915110000|||||1234^Smith^Sarah^^^^^^MD||||1234^Smith^Sarah^^^^^^MD|BOOKEDPID|1||12345678^^^GENERAL_HOSPITAL^MR||Doe^John^Michael||19850315|M|||123 Main Street^^Toronto^ON^M5V2T6^CAN||4165551234PV1|1|O|CLINIC^ROOM1^A^GENERAL_HOSPITAL||||1234^Smith^Sarah^^^^^^MDRGS|1AIS|1||CONSULT^General Consultation|||20260915110000|||30|MINNTE|1||Patient should arrive 15 minutes before the appointment.AIG|1||ECG01^ECG Machine|ECG^Electrocardiograph||20260915110000|||30|MINAIL|1||CLINIC^ROOM1^A^GENERAL_HOSPITALAIP|1||1234^Smith^Sarah^^^^^^MDRGS|2AIS|1||LABWORK^Pre-appointment Laboratory Work|||20260915103000|||20|MINNTE|1||Laboratory work should be completed before the consultation.AIL|1||LAB^ROOM12^A^GENERAL_HOSPITALAIP|1||5678^Jones^Robert^^^^^^MD

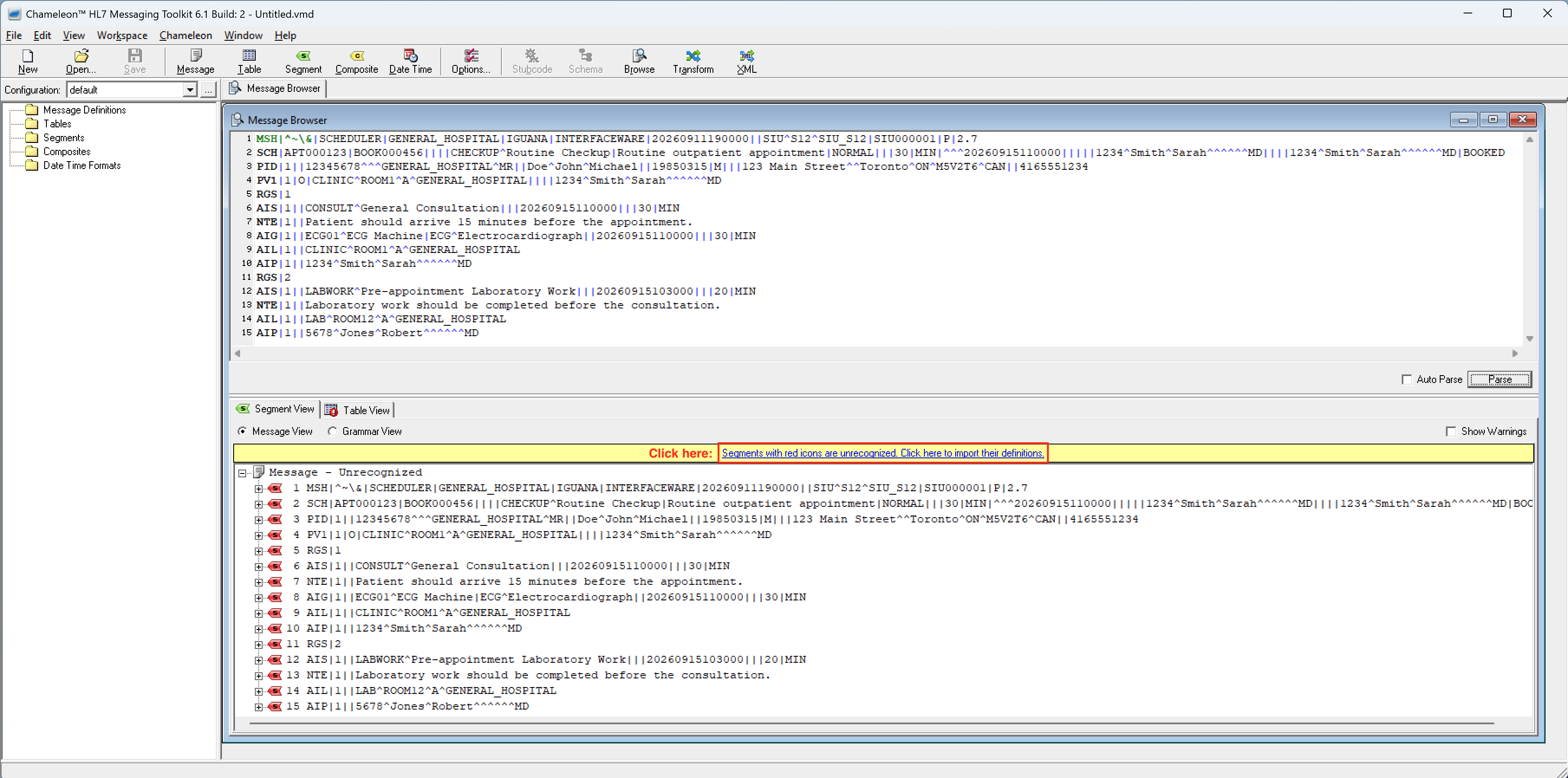

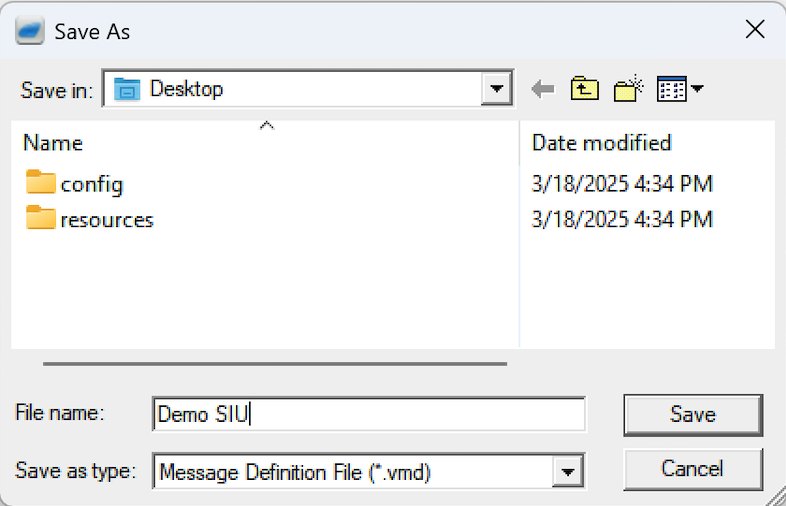

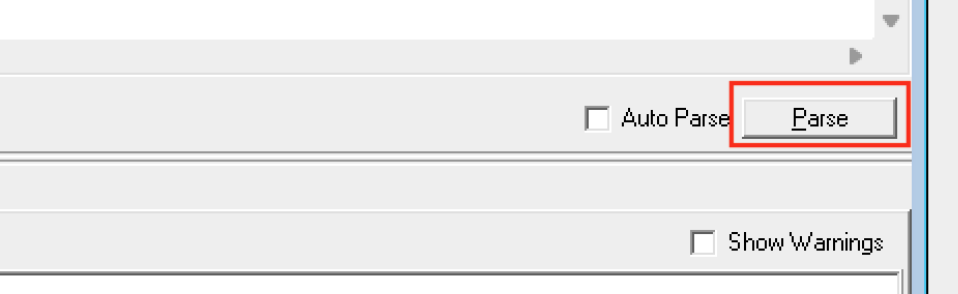

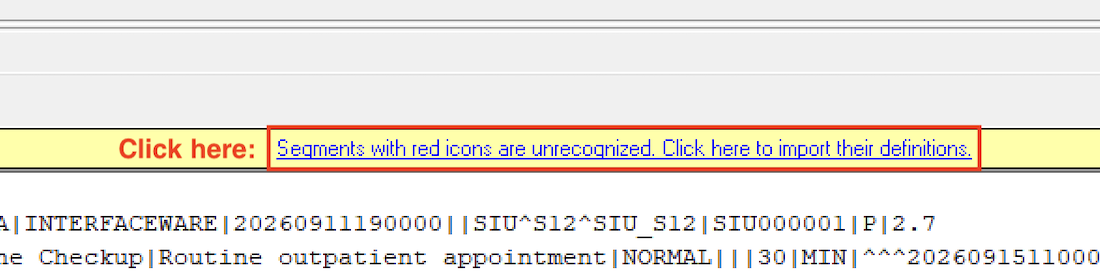

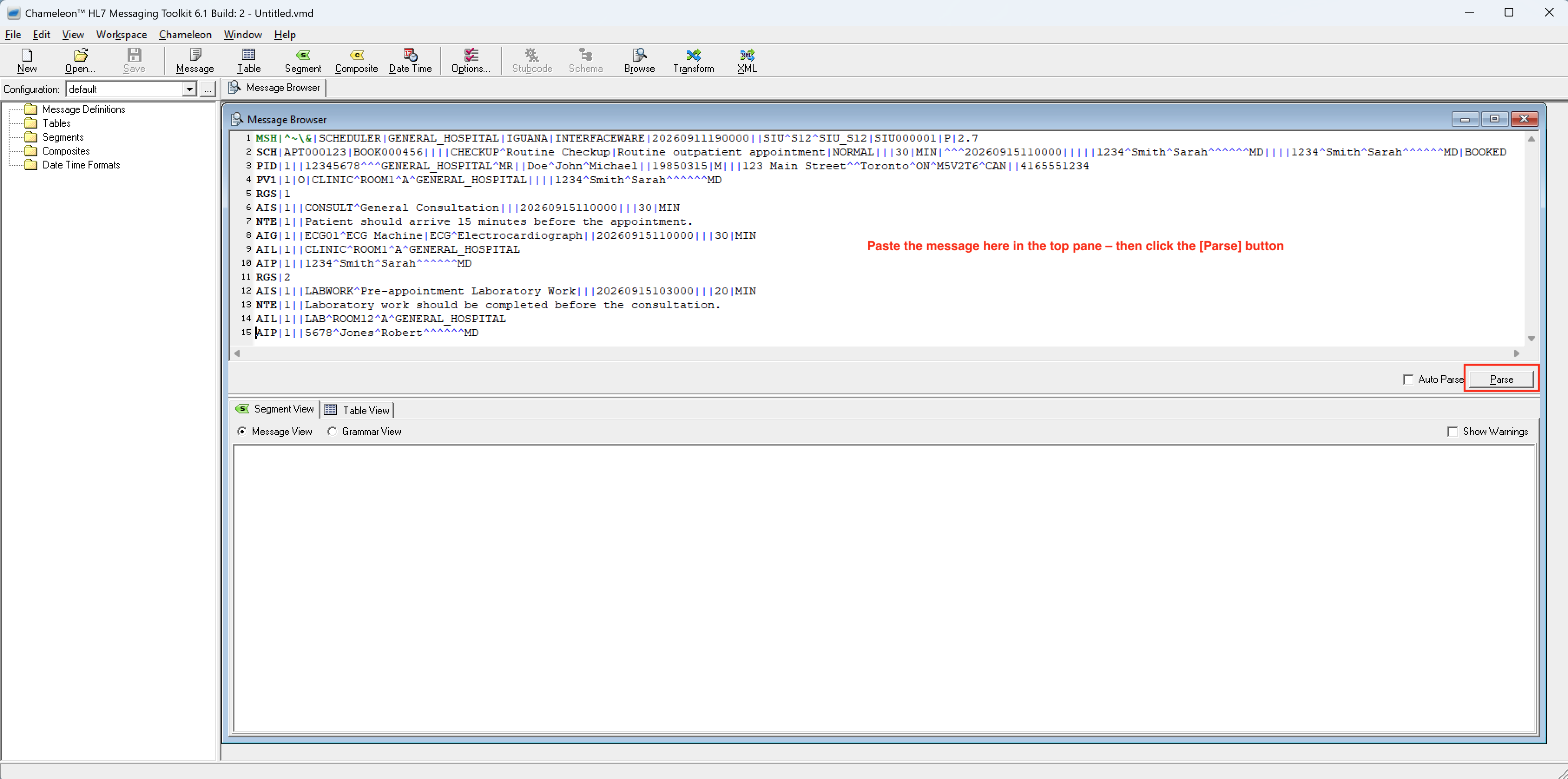

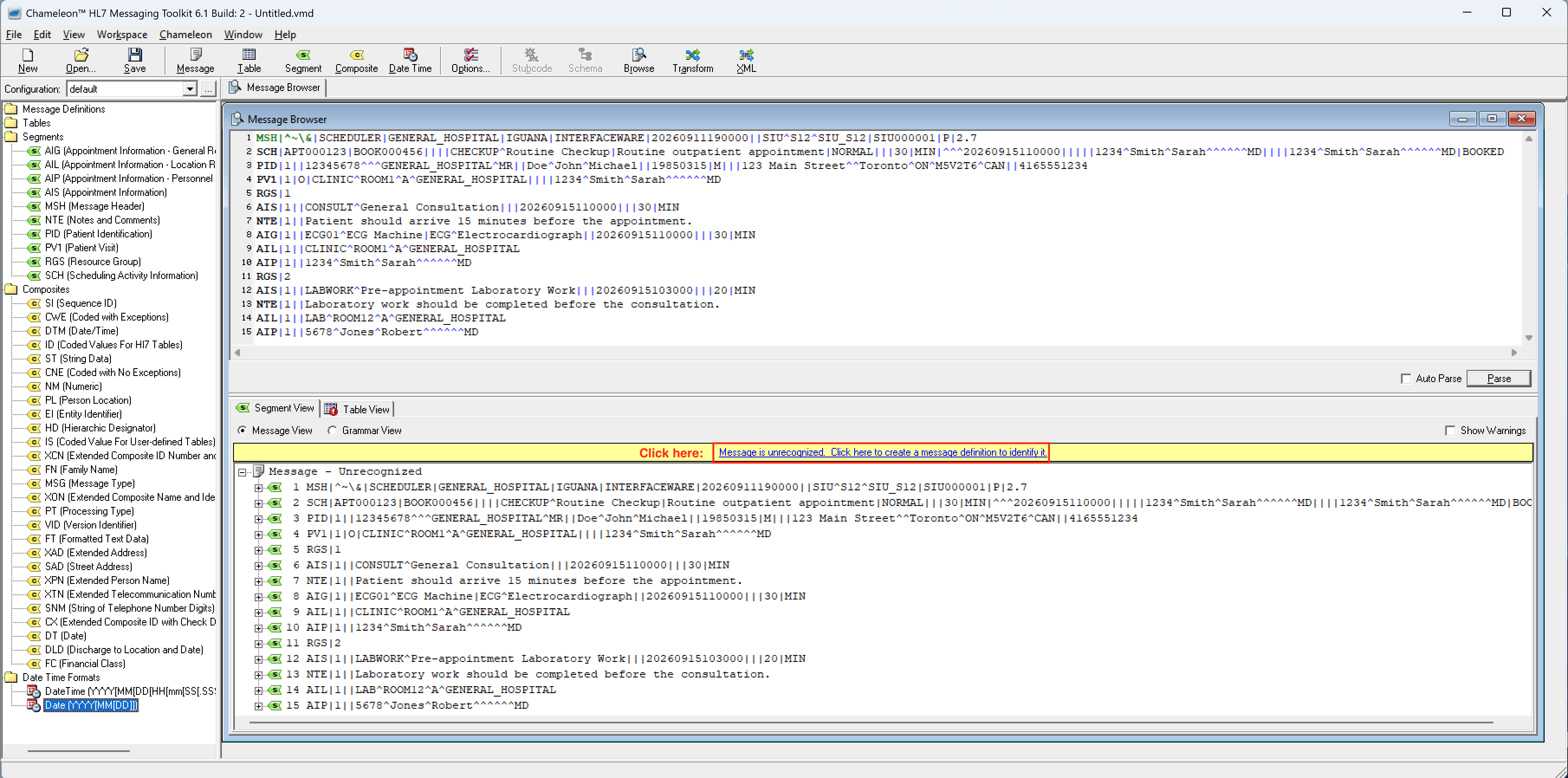

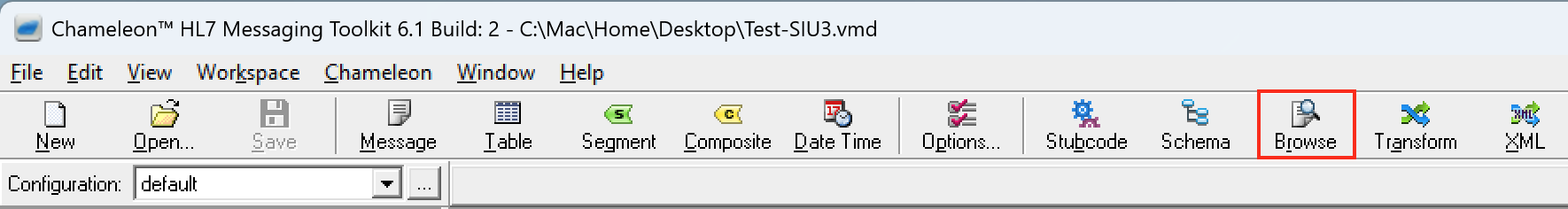

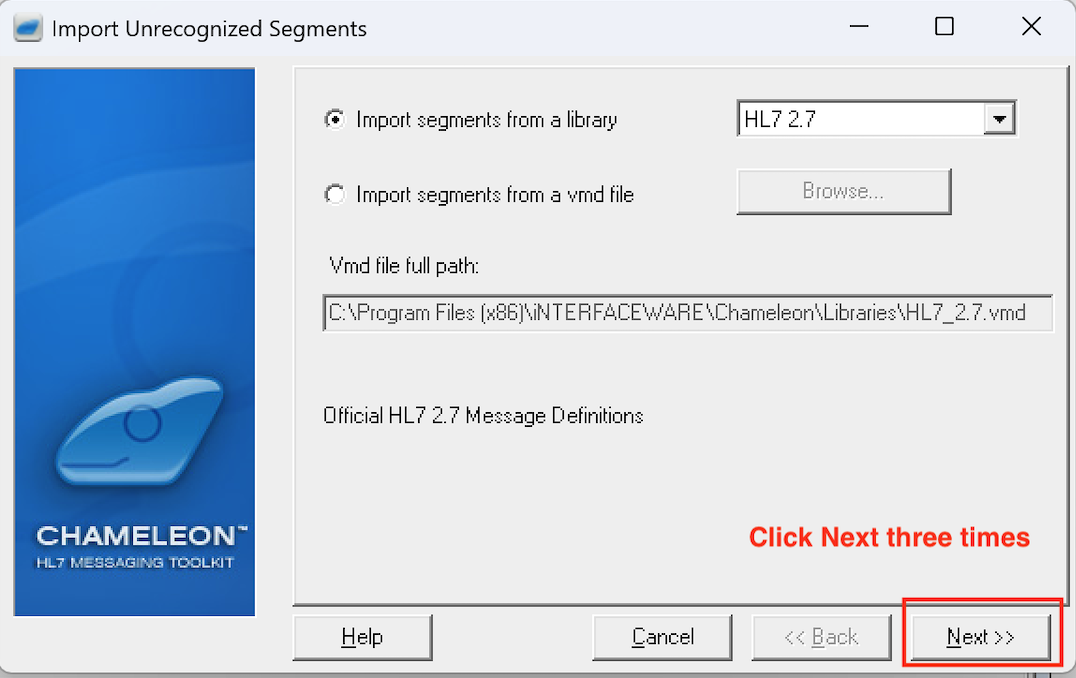

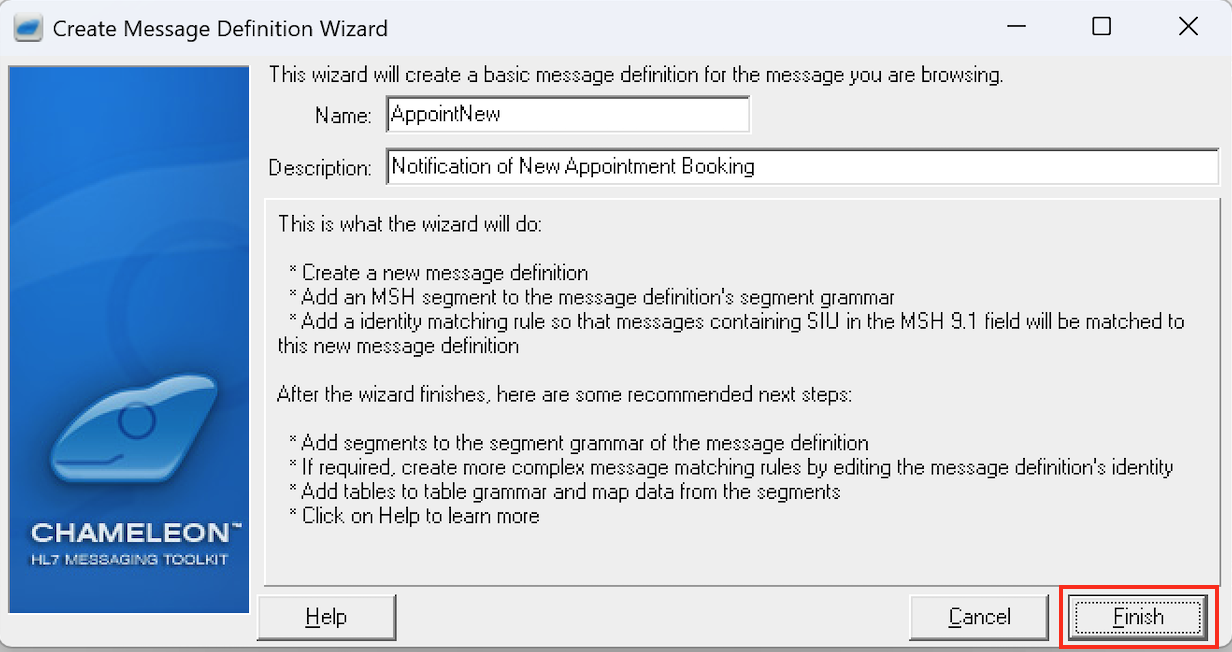

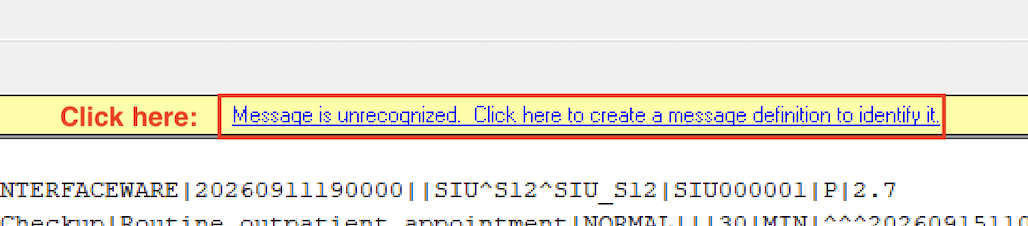

Chameleon procedure to create the VMD file.
